Setting the initial hash value

Before the actual hash computation can begin, the initial hash value H0 must be set based on the specific hash algorithm used. For SHA-256, H(0) is composed of the following 8 32-bit words – denoted H0(0) to H7(0) – which are the first 32 bits of the fractional parts of the square roots of the first 8 prime numbers:

H0(0) = 6a09e667

H1(0) = bb67ae85

H2(0) = 3c6ef372

H3(0) = a54ff53a

H4(0) = 510e527f

H5(0) = 9b05688c

H6(0) = 1f83d9ab

H7(0) = 5be0cd19

For SHA-384, H(0) is composed of eight 64-bit words denoted H0(0) to H7(0), the words being the first 64 bits of the fractional parts of the square roots of the ninth through sixteenth prime numbers:

H0(0) = cbbb9d5dc1059ed8

H1(0) = 629a292a367cd507

H2(0) = 9159015a3070dd17

H3(0) = 152fecd8f70e5939

H4(0) = 67332667ffc00b31

H5(0) = 8eb44a8768581511

H6(0) = db0c2e0d64f98fa7

H7(0) = 47b5481dbefa4fa4

For SHA-512, H(0) is composed of the 8 64-bit words – denoted H0(0) to H7(0) – which are the first 64 bits of the fractional parts of the square roots of the first 8 prime numbers:

H0(0) = 6a09e667f3bcc908

H1(0) = bb67ae8584caa73b

H2(0) = 3c6ef372fe94f82b

H3(0) = a54ff53a5f1d36f1

H4(0) = 510e527fade682d1

H5(0) = 9b05688c2b3e6c1f

H6(0) = 1f83d9abfb41bd6b

H7(0) = 5be0cd19137e2179

The way the constants for the initial hash value H(0) were chosen for the SHA-2 family hash algorithms – namely, by taking the first 16 prime numbers, computing a square root of these numbers, and taking the first 32 or 64 bits of the fractional part of these square roots – is yet another example of nothing-up-my-sleeve numbers.

Because prime numbers are the atoms of number theory and the square root is a simple, well-known operation, it is very unlikely that these constants were chosen for any specific reason.

The choice of the constants is natural and their values are limited because only the first 16 prime numbers are used. As a result, it is very unlikely that someone could design a cryptographic hash function containing a backdoor based on these constants.

Message digest computation

Recall that for SHA-256, the message is first padded to have a length that is a multiple of 512. To compute the SHA-256 message digest, the message is parsed into N 512-bit blocks M(1),M(2),…M(N) is processed as shown in Algorithm 1.

The term Mt(i) denotes specific 32 bits of the 512-bit block M(i). As an example, M0(i) denotes the first 32 bits of block M(i), M1(i) denotes the next 32 bits of block M(i), and so on, up to M15(i). Moreover, the SHA-256 algorithm uses a so-called message schedule consisting of 64 32-bit words W0 to W63, 8 32-bit working variables a to h, and 2 temporary variables T1,T2. The algorithm outputs a 256-bit hash value composed of 8 32-bit words.

Computation of the SHA-512 message digest, shown in Algorithm 2, is identical to that of SHA-256, except that the message schedule consists of 80 64-bit words W0 to W79 and the algorithm uses 8 64-bit working variables a to h and outputs a 512-bit message digest composed of 8 64-bit words.

Moreover, the term Mt(i) now denotes specific 64 bits of the 1,024-bit block M(i). That is, M0(i) denotes the first 64 bits of block M(i), M1(i) denotes the next 64 bits of block M(i), and so on, up to M15(i).

Finally, the SHA-384 hash algorithm is computed exactly like SHA-512, except the following:

• The initial hash value H(0) for SHA-384 is used
• The final hash value H(N) is truncated to H0(N)|| H1(N)|| H2(N)|| H3(N)|| H4(N)|| H5(N) to produce a 384-bit message digest

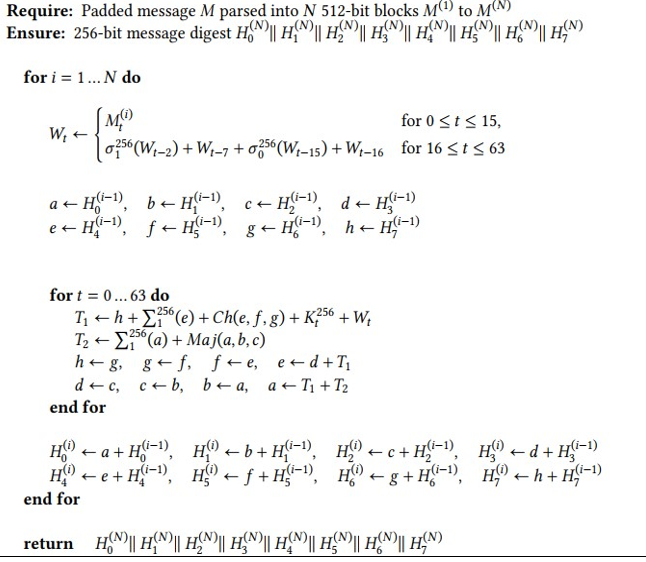

Algorithm 1: Computation of the SHA-256 message digest.

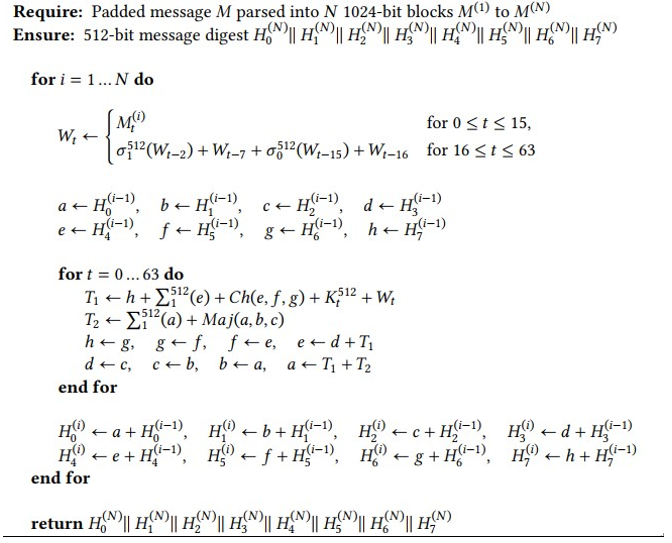

Algorithm 2: Computation of the SHA-512 message digest

SHA-256, SHA-384, and SHA-512 hash functions

SHA-256, SHA-384, and SHA-512 are hash algorithms from the Secure Hash Algorithm-2 (SHA-2) family. The algorithms are defined in FIPS 180-4, Secure Hash Standard (SHS) [129], the standard specifying NIST-approved hash algorithms for generating message digests, and are based on the Merkle-Damgard construction.

The suffix of the SHA-2 algorithms denotes the length of the message digest in bits [140]. As an example, the message digest of SHA-256 has a length of 256 bits. Table 11.1 summarizes the message size, block size, and digest size of all SHA-2 hash family algorithms.

Algorithm.	Message size (bits)	Block size (bits)	Digest size (bits)
SHA-1	< 264	512	160
SHA-224	< 264	512	224
SHA-256	< 264	512	256
SHA-384	< 2128	1024	384
SHA-512	< 2128	1024	512
SHA-512/224	< 2128	1024	224
SHA-512/256	< 2128	1024	256

 Table 11.1: Basic properties of SHA-2 hash family algorithms

All SHA-2 hash algorithms use a set of similar basic functions, only with different lengths of input and output. Every SHA-2 algorithm uses the following functions where x,y, and z are either 32-bit or 64-bit values, ⊕ denotes exclusive-OR, and ∧ denotes bitwise AND:

• Ch(x,y,z) = (x ∧ y) ⊕ (¬x ∧ z)
• Maj(x,y,z) = (x ∧ y) ⊕ (x ∧ z) ⊕ (y ∧ z)

SHA-256 functions

In addition to the preceding functions, SHA-256 uses four logical functions. Each function is applied to a 32-bit value x and outputs a 32-bit result:

∑ 0256(x) = ROTR2(x) ⊕ ROTR13(x) ⊕ ROTR22(x)

∑ 1256(x) = ROTR6(x) ⊕ ROTR11(x) ⊕ ROTR25(x)

σ0256(x) = ROTR7(x) ⊕ ROTR18(x) ⊕ SHR3(x)

σ1256(x) = ROTR17(x) ⊕ ROTR19(x) ⊕ SHR10(x)

In the preceding functions, ROTRn(x) denotes a circular right-shift operation applied to a w-bit word x, using an integer 0 ≤ n < w, defined as (x ≫ n) ∨ (x ≪ w −n), and SHRn(x) denotes a right-shift operation applied to a w-bit word x, using an integer 0 ≤ n < w, defined as x ≫ n.

SHA-512 functions

Similar to SHA-256, SHA-384 and SHA-512 also use four logical functions. However, the functions are applied to a 64-bit value x and output a 64-bit result:

∑ 0512(x) = ROTR28(x) ⊕ ROTR34(x) ⊕ ROTR39(x)

∑ 1512(x) = ROTR14(x) ⊕ ROTR18(x) ⊕ ROTR41(x)

σ0512(x) = ROTR1(x) ⊕ ROTR8(x) ⊕ SHR7(x)

σ1512(x) = ROTR19(x) ⊕ ROTR61(x) ⊕ SHR6(x)

SHA-256 constants

SHA-256 uses 64 32-bit constants K0256,K1256,…,K63256 that are the first 32 bits of the fractional parts of cube roots of the first 64 prime numbers.

SHA-384 and SHA-512 constants

SHA-384 and SHA-512 use 80 64-bit constants K0512,K1512,…,K79512 that are the first 64 bits of the fractional parts of cube roots of the first 80 prime numbers.

Preprocessing the message

All hash functions in the SHA-2 family preprocess the message before performing the actual computation. The preprocessing consists of three steps:

1. Padding the plaintext message to obtain a padded message that is a multiple of 512 bits for SHA-256 and a multiple of 1,024 bits for SHA-384 and SHA-512.
2. Parsing the message into blocks.
3. Setting the initial hash value H(0).

For SHA-256, the padded message is parsed into N 512-bit blocks M1,M2,…,MN. Because every 512-bit input block can be divided into 16 32-bit words, the input block i can be expressed as M0i,M1i,…,M1i5 where every Mji has the length of 32 bits.

Similarly, for SHA-384 and SHA-512, the padded message is parsed into N 1,024-bit blocks M1,M2,…MN. Because a 1024-bit input block can be divided into 16 64-bit words, the input block i can be expressed as M0i,M1i,…,M1i5 where every Mji has the length of 64 bits.

11.7 Hash functions in TLS 1.3

We’ll now take a look at how hash functions are negotiated within the TLS handshake and how they are subsequently used in the handshake.

11.7.1 Hash functions in ClientHello

Recall that Alice and Rob use the TLS handshake protocol to negotiate the security parameters for their connection. They do it using TLS handshake messages shown in Listing 11.3. Once assembled by the TLS endpoint – that is, server Alice or client Bob – these messages are passed to the TLS record layer where they are embedded into one or more TLSPlaintext or TLSCiphertext data structures. The data structures are then transmitted according to the current state of the TLS connection.

Listing 11.3: TLS 1.3 handshake messages

enum {
   client_hello(1),
   server_hello(2),
   new_session_ticket(4),
   end_of_early_data(5),
   encrypted_extensions(8),
   certificate(11),
   certificate_request(13),
   certificate_verify(15),
   finished(20),
   key_update(24),
   message_hash(254),
   (255)
} HandshakeType;

One of the most important TLS handshake messages is ClientHello since this message starts a TLS session between client Bob and server Alice. The structure of the ClientHello message is shown in Listing 11.4. The cipher˙suites field in ClientHello carries a list of symmetric key algorithms supported by client Bob, specifically the encryption algorithm protecting the TLS record layer and the hash function used with the HMAC-based key derivation function HKDF.

Listing 11.4: TLS 1.3 ClientHello message

struct {
   ProtocolVersion legacy_version = 0x0303;    /* TLS v1.2 */
   Random random;
   opaque legacy_session_id<0..32>;
   CipherSuite cipher_suites<2..2^16-2>;
   opaque legacy_compression_methods<1..2^8-1>;
   Extension extensions<8..2^16-1>;
} ClientHello;

11.7.2 Hash Functions in TLS 1.3 signature schemes

Recall that server Alice and client Bob also agree upon the signature scheme they will use during the TLS handshake. The SignatureScheme field indicates the signature algorithm with the corresponding hash function. The following code shows digital signature schemes supported in TLS 1.3:

enum {
    /* RSASSA-PKCS1-v1_5 algorithms */
    rsa_pkcs1_sha256(0x0401),
    rsa_pkcs1_sha384(0x0501),
    rsa_pkcs1_sha512(0x0601),
    /* ECDSA algorithms */
    ecdsa_secp256r1_sha256(0x0403),
    ecdsa_secp384r1_sha384(0x0503),
    ecdsa_secp521r1_sha512(0x0603),
    /* RSASSA-PSS algorithms with public key OID rsaEncryption */
    rsa_pss_rsae_sha256(0x0804),
    rsa_pss_rsae_sha384(0x0805),
    rsa_pss_rsae_sha512(0x0806),
    /* EdDSA algorithms */
    ed25519(0x0807),
    ed448(0x0808),
    /* RSASSA-PSS algorithms with public key OID RSASSA-PSS */
    rsa_pss_pss_sha256(0x0809),
    rsa_pss_pss_sha384(0x080a),
    rsa_pss_pss_sha512(0x080b),
    — snip —
} SignatureScheme;

We’ll now discuss the SHA family of hash functions in detail.

SHA-1

SHA-1 is a hash algorithm that was in use from 1995 as part of the FIPS standard 180-1, but has been deprecated by NIST, BSI, and other agencies due to severe security issues with regard to its collision resistance. In 2005, a team of Chinese researchers published the first cryptanalytic attacks against the SHA-1 algorithm. These theoretical attacks allowed the researchers to find collisions with much less work than with a brute-force attack. Following further improvements in these attacks, NIST deprecated SHA-1 in 2011 and disallowed using it for digital signatures in 2013.

In 2017, a team of researchers from the CWI Institute in Amsterdam and Google published Shattered, the first practical attack on SHA-1, by crafting two different PDF files having an identical SHA-1 signature. You can test the attack yourself at https://shattered.io/.

Finally, in 2020, two French researchers published the first practical chosen-prefix collision attack against SHA-1. Using the attack, Mallory can build colliding messages with two arbitrary prefixes. This is much more threatening for cryptographic protocols, and the researchers have demonstrated their work by mounting a PGP/GnuPG impersonation attack. Moreover, the cost of computing such chosen-prefix collisions has been significantly reduced over time and is now considered to be within the reach of attackers with computing resources similar to those of academic researchers [64].

While SHA-1 must not be used as a secure cryptographic hash function, it may still be used in other cryptographic applications [64]. As an example, based on what is known today, SHA-1 can be used for HMAC because the HMAC construction does not require collision resistance. Nevertheless, authorities recommend replacing SHA-1 with a hash function from the SHA-2 or SHA-3 family as an additional security measure [64].
